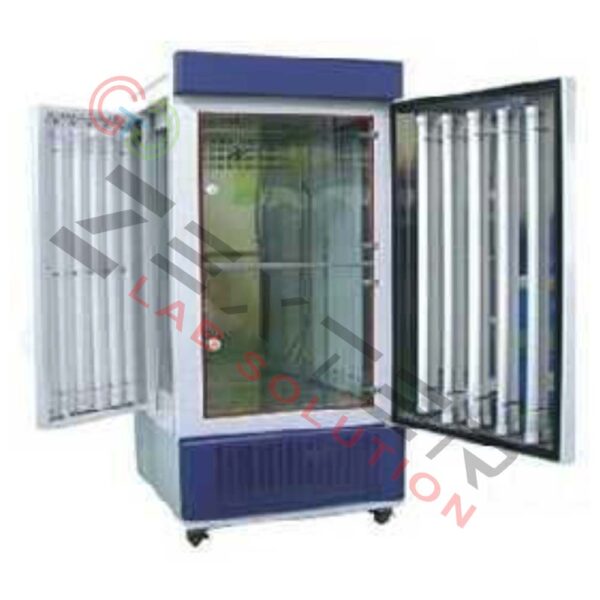

ZEXTER PLANT GROWTH CHAMBER / ENVIRONMENTAL CHAMBER (Model No. GGT – 409)
G.G. TECHNOLOGIES
Manufacturers of Hospital, Institute, Industries, Agriculture, Pharmaceutical, Lab Testing Equipments
FEATURES
- Many area of plant research require the use of a controlled environment. In this way, a plant’s response to different conditions can be monitored or a particular habitat imitated.
- Standard propagation techniques can be greatly speeded up using a growth cabinet as well as achieving a higher success rate.
- Where micro propagation is being used a growth cabinet is essential for rooting the plantlets and adapting them to normal conditions.
- This plant growth cabinet is ideal for all routine propagation and research applications.
- Oriented design of shelves makes you adjust each space of shelves without difficulty.
- With a solid see through double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
- Front double walled door is provided with lock and key arrangement.
- Caster wheel mounted for easy portability.
- Excellent quality magnetic gum packing door gasket for external door.
- Door operated illumination lamp is fitted inside the chamber for easy visibility.
- Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption.
- Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
- Exterior illumination with the help of fluorescent lamps/tubes accounts for artificial daylight conditions.
- Finned tube evaporator facilitates uniform and faster cooling effects.
- Safety Thermostat to prevent overheating.
- Fitted with Electronic Voltmeter.
- Works on 220/230 Volts AC (50/60 Hz frequency).
TECHNICAL SPECIFICATION
| Parameter |
Specification |
| Type |
Forced Convection Type |
| Freezer Compressor |
Hermetically sealed air cooling compressor system |
| Temperature Range |
Ambient 5°C to 60°C |
| Temperature Accuracy |
±1°C |
| Humidity Creation |
Through sophisticated steam injection process. |
| Humidity Range |
5% above ambient from 40% to 95% RH at cool temperatures |
| Humidity Accuracy |
±3%RH |
| Exterior |
Powder coated CRC Steel Sheet |
| Interior |
Chamber and trays made of Stainless Steel (SS-304) |
| Safety |
Over temperature limiter switch prevents overheating |
| Illumination |
Exterior illumination with fluorescent tubes/lamps |
| Controller |
Fitted with Microprocessor based TEMPERATURE-HUMIDITY CONTROLLER:
- Membrane keyboard with tactile feedback
- Programmable time interval from 0-99 minutes
- Real Time Clock
- Audio/Visual alarm for temperature deviation from set values.
- Temperature sensors: PT-100 (Resolution 0.1°C).
- Humidity Sensors: Capacitive
|
| Display |
LCD Display for set value and process value |
| High Voltage Protection (OPTIONAL) |
Through automatic voltage stabilizer (Strongly Recommended) |
SIZES
| Model No. |
Dimension |
Chamber Cap |
Approx. Ltrs. Cap |
| PGEC-4 |
455 x 410 x 610 |
4 cu ft. |
112 |
| PGEC-6 |
505 x 415 x 830 |
6 cu ft. |
171 |
| PGEC-10 |
570 x 550 x 875 |
10 cu ft. |
280 |
| PGEC-12 |
650 x 580 x 900 |
12 cu ft. |
336 |
| PGEC-15 |
700 x 640 x 900 |
15 cu ft. |
420 |
| PGEC-16 |
700 x 640 x 970 |
16 cu ft. |
450 |
| PGEC-20 |
775 x 775 x 900 |
20 cu ft. |
560 |
| PGEC-30 |
825 x 825 x 1200 |
30 cu ft. |
840 |
OPTIONAL ACCESSORIES
- Data (Temperature, humidity and light levels) storage.
- Five Levels light control (0%, 25%, 50%, 75% and 100%).
- Provision to set different temperature & illumination conditions for day and night.
- HMI touch screen controller PLC based without SMS Alert.
- With SMS Alert option for Maximum 03 person (Extra charge).
