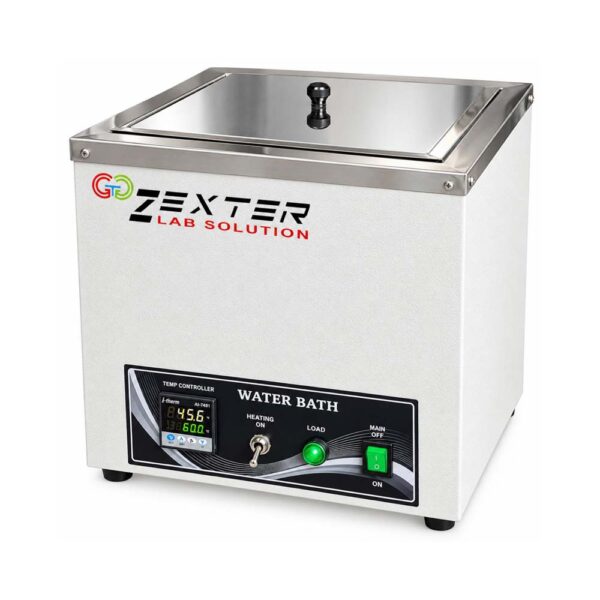

SEROLOGICAL WATER BATH (CIRCULATING)
Model No.- GGT-201
G.G. TECHNOLOGIES
ZEXTER
MANUFACTURERS OF HOSPITAL, INSTITUTE, INDUSTRIES AGRICULTURE, PHARMACEUTICAL, LAB TESTING EQUIPMENTS
SPECIFICATIONS:
- Compact space saving concept can be placed under or over the workbench.
- Effective water/liquid heated circulator for tighter temperature controls.
- Reduces tap water consumption thus reducing high cost of water and waste water.
- Industrial grade energy efficient heaters reduces power bills drastically
- Built in Noiseless long lasting Magnetic Field circulating pump for efficient circulating processes. Offers highest level of performance, flexibility and control for most demanding applications.
- Waste water does not contain hazardous substances thus eliminating danger to personnel and environment caused by solvents.
- Seamless round curve S.S-304 tank for easily clean and leak proof.
TECHNICAL SPECIFICATION:
| Inner Chamber | Stainless steel sheet (S.S.-304 Grade) |
| Outer Chamber | CRC sheet duly powder coated / S.S 304 grade |
| Lid | Stainless steel sheet |
| Temperature Range | Ambient+5°C to 100°C |
| Temperature Accuracy | ±0.5°C |
| Temperature Display Resolution | 0.1°C |
| Controller | Microprocessor based digital temperature indicator-cum-Controller |
| Display | LED display for set value (SV) & process value (PV) |
| Heater load | 1.5 Kw |
| Auto Control | With respect to temperature and time with in-built timer and buzzer alarm |
| Insulation | Filled with high grade mineral wool |
| Silicon Tubing | Supplied with 2 no. of silicon tubings of 1 mtr each as standard accessory |
| Circulating Pump | Powerful Magnetic field pump noiseless with 15 lpm capacity at zero head (for water) |
| Advisable | Do not use water above 90°C (use silicon oils above 90°C) |
| Works On | 220/230 Volts, 50/60 AC supply |
| Model No. | Size inside Chamber (Stainless Steel) | Capacity approx. |
|---|---|---|
| SWB-1 Racks | 300 x 175 x 175mm (Suitable for 1 racks) | 10 Ltr |
| SWB-2 Racks | 300 x 250 x 175mm (Suitable for 2 racks) | 14 Ltr |
| SWB-4 Racks | 300 x 300 x 175mm (Suitable for 4 racks) | 18 Ltr |
| SWB-6 Racks | 455 x 300 x 175mm (Suitable for 6 racks) | 25 Ltr |
| SWB-8 Racks | 605 x 300 x 175mm (Suitable for 8 racks) | 32 ltr |
Note: We can also make as per customized.
