BOTTLE WASHING MACHINE GGT – 1508

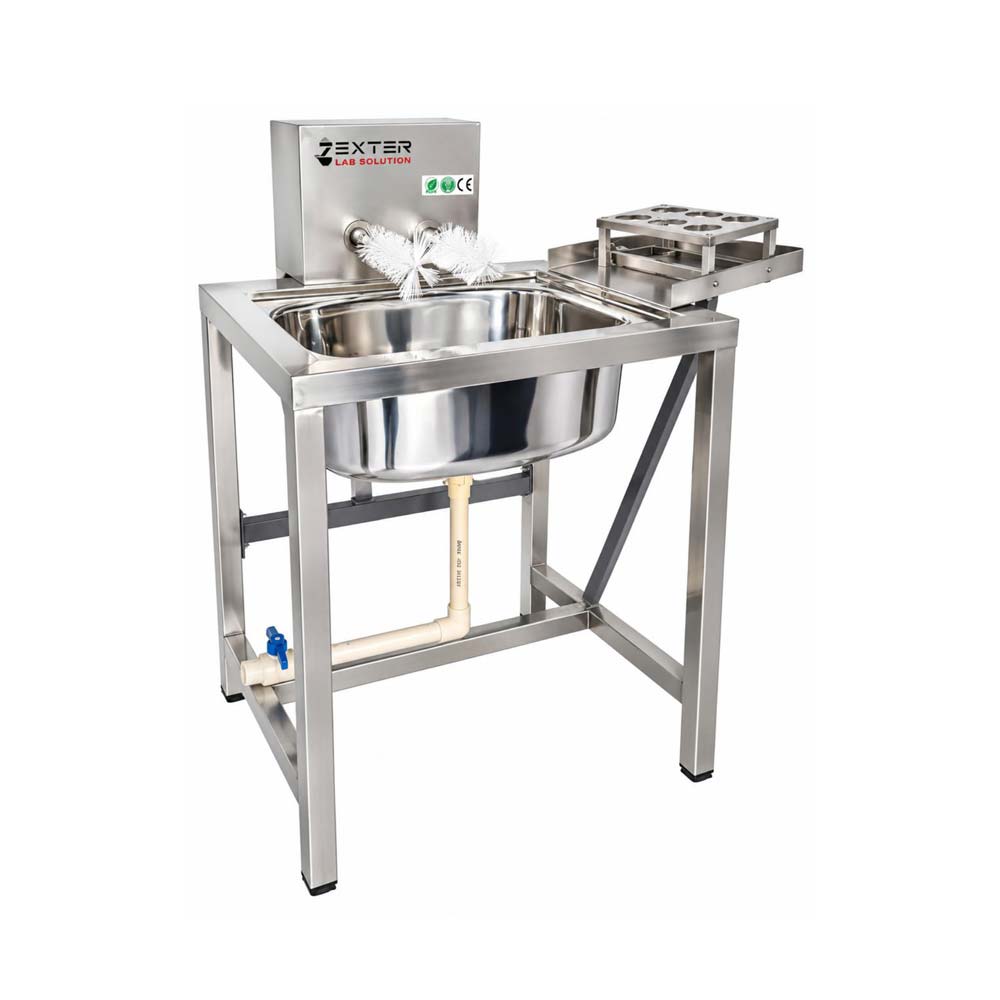

BOTTLE WASHING MACHINE (MODEL NO. GGT-1508)

ZEXTER – A Pioneer in Lab Solutions

Bottle Washing Machine is an electrically operated unit designed for efficient cleaning of bottles, syringes, test tubes and other similar laboratory items.

The machine is provided with a quick release chuck that can accommodate a wide variety of interchangeable nylon brushes. Different brushes can be selected according to the type and size of the item being cleaned.

Table models are mounted on a heavy base and are provided with a single chuck. Floor model Bottle Washing Machines are available with soaking tanks and are provided with 6/12 ringers and two drill chucks for holding a variety of brushes.

The floor model is mounted on a sturdy angle iron frame duly painted for durable and reliable operation.

APPLICATION

• Bottle Washing
• Syringe Cleaning
• Test Tube Cleaning
• Laboratory Glassware Cleaning
• Laboratory Bottle Cleaning
• Pharmaceutical Laboratories
• Research Laboratories
• Institutional Laboratories

FEATURES

• Electrically operated Bottle Washing Machine.
• Quick release chuck for convenient brush replacement.
• Supports a wide variety of interchangeable nylon brushes.
• Suitable for cleaning syringes, test tubes and bottles.
• Table models mounted on a heavy base.
• Table models provided with single chuck.
• Available with fixed speed or variable speed motor.
• Floor model available with soaking tank.
• Floor model provided with 6/12 ringers.
• Two drill chucks provided in floor model for holding different brushes.
• Floor model mounted on sturdy angle iron frame.
• G.I. and Stainless Steel soaking tank options available.
• Customized models can also be manufactured.

WORKING PRINCIPLE

The Bottle Washing Machine operates with an electrically driven chuck that holds interchangeable nylon cleaning brushes.

The required brush is fitted into the quick release chuck according to the bottle, syringe, test tube or other item to be cleaned. The motor rotates the brush to provide effective cleaning.

Floor models incorporate soaking tanks along with multiple ringers and drill chucks, allowing different brushes to be used according to the cleaning requirement.

CONSTRUCTION

The table model is mounted on a heavy base and is equipped with a single chuck. It is available with either a fixed speed or variable speed motor.

The floor model is mounted on a sturdy angle iron frame duly painted and is available with G.I. or Stainless Steel soaking tanks. It is provided with 6/12 ringers and two drill chucks for accommodating a variety of brushes.

TECHNICAL SPECIFICATIONS

• Model: GGT-1508
• Type: Bottle Washing Machine
• Operation: Electrically Operated
• Brush Type: Interchangeable Nylon Brushes
• Chuck Type: Quick Release Chuck
• Table Model Chuck: Single Chuck
• Table Model Motor: 1/4 HP
• Motor Options: Fixed Speed / Variable Speed
• Floor Model: With Soaking Tank
• Floor Model Ringers: 6/12
• Floor Model Drill Chucks: 2 Nos.
• Floor Model Frame: Sturdy Angle Iron Frame, Duly Painted

AVAILABLE MODELS & TANK SIZES

• Table Model: 1/4 HP Fixed Speed Motor
• Table Model: 1/4 HP Variable Speed Motor
• G.I. Soaking Tank: 30″ × 20″ × 12″
• G.I. Soaking Tank: 30″ × 20″ × 18″
• S.S. Soaking Tank: 30″ × 20″ × 12″
• S.S. Soaking Tank: 30″ × 20″ × 18″
• S.S. Soaking Tank: 30″ × 19″ × 12″

CUSTOMIZATION

• Customized Bottle Washing Machine configurations are also available as per customer requirements.
