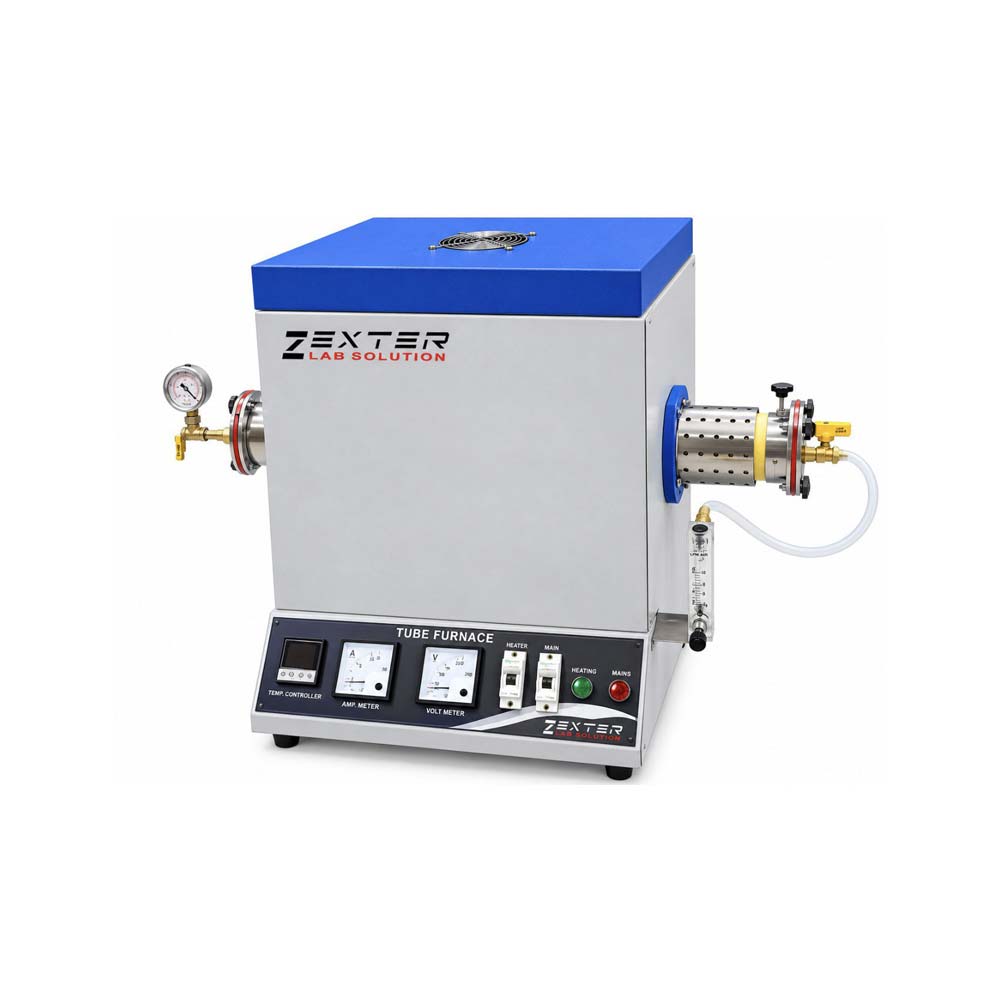

TUBE FURNACE (MODEL NO. GGT-1529)
ZEXTER – A Pioneer Name in Lab Solutions
The Tube Furnace Model GGT-1529 is an electrically operated furnace with a working temperature of 1100°C and a maximum temperature of 1150°C. It is designed with a tubular high-purity alumina tube, double-wall M.S. construction, high-temperature insulation, gas purging arrangement and microprocessor-based PID temperature control.
FURNACE STRUCTURE
| Specification | Details |
|---|---|
| Furnace Type | Tubular Type |
| Inner Diameter | 100 mm |
| Outer Diameter | 110 mm |
| Hot Zone Length | 200 mm – 300 mm (As per Customer Requirement) |
| Shell Construction | Double Wall High Quality Fabrication of M.S. Sheet Structure with Proper Stiffeners and Neat Powder Coat Painting |
| Furnace Stand & Panel Box | Control Panel Box at Side of the Furnace |
| Insulation | High Alumina Block Bricks A-29 Grade Alumina backed by Mechanically Pressed Zirconium Blanket Ceramic Fibre |
| Tube Material | High Purity Alumina |
| Input Supply | 220 V (±10%), Single Phase |
| Atmosphere Inside Tube | Nitrogen / Argon |
| Tube Length | Furnace Overall Length + 800 mm, providing 400 mm free length on either side |
GAS PURGING SYSTEM
- Ends of the tube are provided with aluminium couplers.
- Cooling attachment provided for gas purging.
- Gas purging system supplied with Rota Meter.
- Suitable for Nitrogen / Argon atmosphere inside the tube.
SPARE TUBES
| Item | Quantity | Material / Grade |
|---|---|---|
| Transparent Quartz Tubes | 2 Nos. | Transparent Quartz |
| Stainless Steel Tubes | 2 Nos. | SS 316L Grade |
HEATING SYSTEM
| Specification | Details |
|---|---|
| Heating Elements | Nichrome Wire 80/20 / Kanthal-A1 for Heat Treatment |
| Make | Kanthal Sweden |
| Type of Element | Spring Type |
| Power | 2 / 4 / 6 KW, Single Phase (As per Required Size) |
| Maximum Temperature | 1150°C |
| Working Temperature | 1100°C (For Continuous Operation – 24 Hours) |
CONTROL SYSTEM
| Specification | Details |
|---|---|
| Temperature Control | Microprocessor Based Digital Temperature Controller Cum Indicator (PID) with 8 Ramps and 8 Soaks |
| Temperature Sensor | CR/AL Wire (K) Type Thermocouple with Recrystallized Alumina Beads and Sheath |
| Accuracy | ±1°C |
| Temperature Stability | ±3-5°C after 30 Minutes |
| Heating Rate | 5 to 100C / per Min |
| Cooling Rate | 5 to 100C / per Min |
| Temperature Programmer | PID Programmer, 8 Ramp and 8 Soak Digital Temperature Controller Cum Indicator |
| Power Control | Microprocessor Based Digital Temperature Controller |
INDICATIONS & CONTROLS
- Amp Meter
- Pilot Indicating Light
- Mains Indicator
- Output Indicator
- Mains ON Control Switch
- Output ON Control Switch
SAFETY
- Input Fuse
- Output Fuse
- High Rupturing Capacity Fuses
