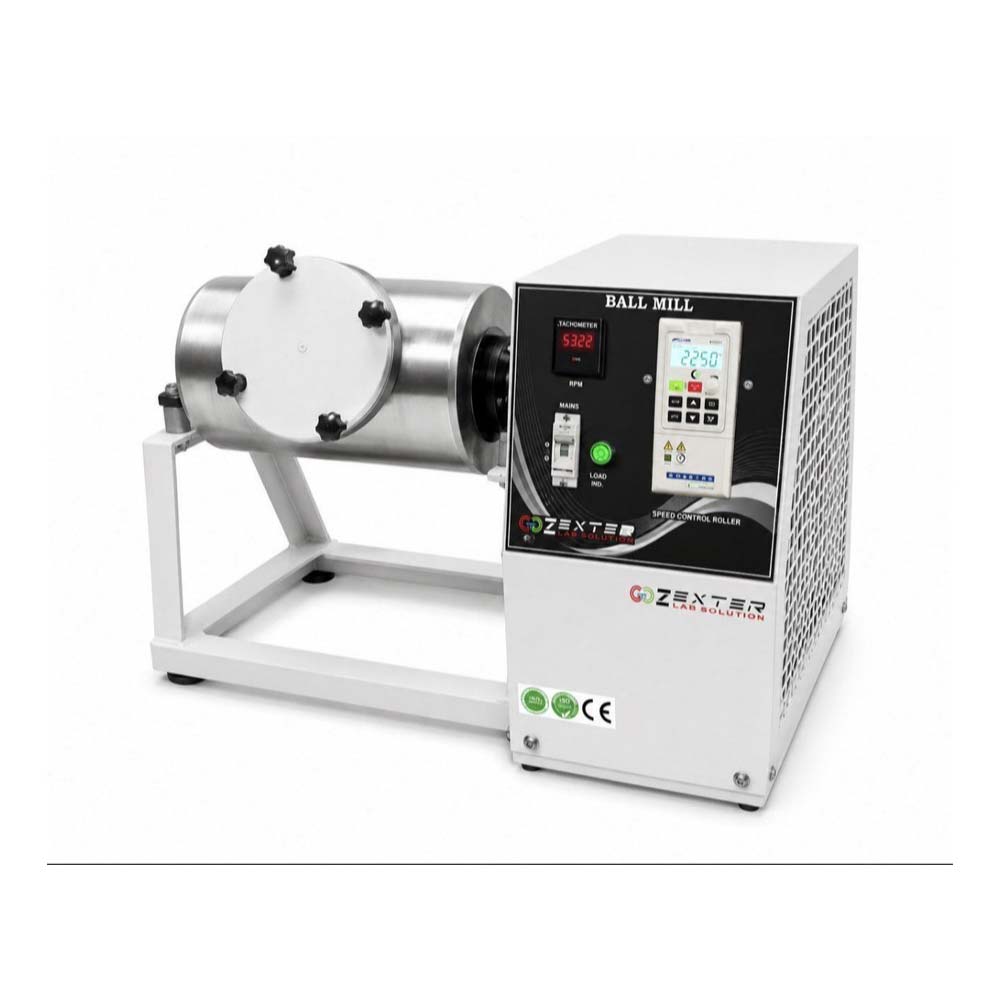

BALL MILL AC DRIVE (MODEL NO. GGT-1009)

ZEXTER – A Pioneer in Lab Solutions

Ball Mill is a key equipment designed for grinding crushed materials and is widely used in powder-making production applications. It is suitable for grinding various ores and other materials using both dry and wet grinding methods.

The Ball Mill consists of a cylindrical shell mounted on a sturdy Mild Steel frame. The shell is designed to withstand the rotational load of the mill along with the grinding media and material being processed.

Openings are provided for loading the grinding media and material into the mill. The cylindrical shell rotates on a horizontal axis and is driven by a motor coupled to a helical/reduction gearbox with gear and pinion arrangement.

The Ball Mill is suitable for processing a wide range of materials including pigment colours, minerals and ores, chemicals, technical products, dyestuffs, fertilizers, insecticides and pesticides.

APPLICATION

• Pigment Colours
• Minerals & Ores
• Chemicals
• Technical Products
• Dyestuffs
• Fertilizers
• Insecticides & Pesticides
• Cement
• Silicate Materials
• Building Materials
• Refractory Materials
• Ferrous Metal Ore Dressing
• Non-Ferrous Metal Ore Dressing
• Glass Ceramics
• Dry Grinding Applications
• Wet Grinding Applications

FEATURES

• Long functional life.
• Hassle-free operation.
• Corrosion and abrasion resistant construction.
• Easy installation.
• Sturdy construction.
• Facilitates easy loading and unloading of material.
• Suitable for both dry and wet grinding.
• Heavy-duty horizontal rotating design.
• Cylindrical shell mounted on a sturdy Mild Steel frame.
• Motor driven through helical/reduction gearbox.
• Gear and pinion drive arrangement.
• Available in M.S. powder painted construction or All Stainless Steel body.

WORKING PRINCIPLE

The Heavy-Duty Ball Mill is a horizontal rotating device transmitted by an outer gear. The material is transferred into the grinding chamber through the feed opening.

Different specifications of steel balls or ceramic balls are used as grinding media inside the chamber. During operation, centrifugal force generated by rotation of the barrel carries the grinding balls to a certain height.

The balls then fall and create impact on the material, resulting in grinding of the material. After the required grinding process is completed, the ground material is discharged through the discharge arrangement.

CONSTRUCTION

The Ball Mill consists of a cylindrical shell mounted on a sturdy Mild Steel frame. The shell is designed to withstand the rotational load of the mill when charged with grinding media and the material to be processed.

The unit is provided with openings for loading grinding media and material. The shell rotates on a horizontal axis and is driven by a motor coupled to a helical/reduction gearbox through a gear and pinion arrangement.

The unit can be manufactured in M.S. duly powder painted construction or with an All Stainless Steel body.

TECHNICAL SPECIFICATIONS

• Model: GGT-1009
• Type: Ball Mill AC Drive
• Construction: M.S. Duly Powder Painted / All S.S. Body
• Operating Type: Horizontal Rotating
• Drive: Motor Coupled with Helical/Reduction Gearbox
• Transmission: Gear & Pinion Arrangement
• Grinding Media: Steel Balls / Ceramic Balls
• Grinding Type: Dry & Wet
• Working Speed: 30-40 RPM

AVAILABLE CAPACITIES

• 25 Kg
• 50 Kg

CAPACITY & GRINDING MEDIA

• Working Capacity: Approximately 30-35% of total capacity after loading grinding media.
• Grinding Media Loading: Approximately 40-60% of mill volume depending on the material to be ground.
