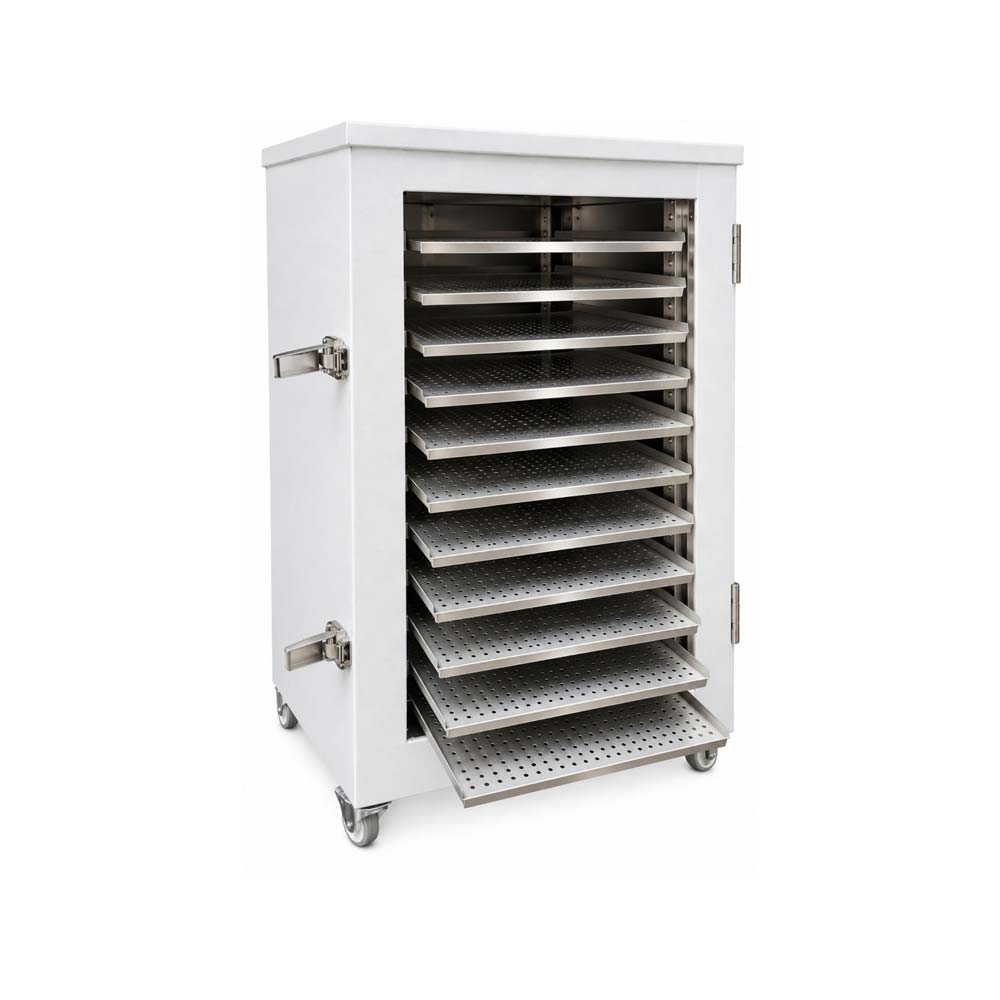

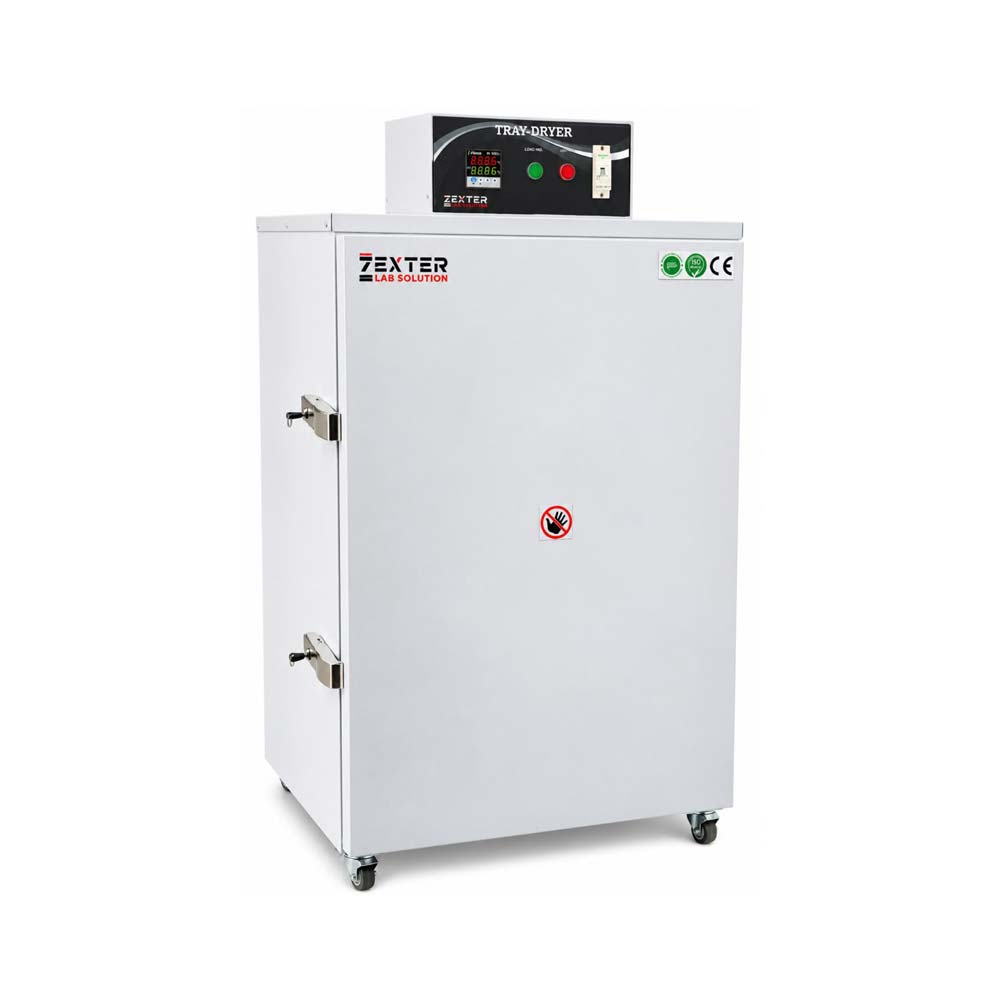

TRAY DRYER (MODEL NO. GGT-307)
ZEXTER – A Pioneer Name in Lab Solutions
The Tray Dryer is suitable for various industrial, laboratory and R&D applications. It features double-walled construction with a choice of M.S., S.S.-304 or S.S.-316 grade interior and a powder-coated exterior.
High-grade mineral wool insulation is provided between the formed cavity to minimize heat loss during operation. Heating is carried out through special-grade tubular air heaters positioned in the circulating air path, while strong and reliable axial flow fans provide heavy forced-air cross-flow circulation.
An adjustable damper is provided to exhaust moist air, fumes or vapours, thereby enhancing thermal efficiency.
FEATURES
- Suitable for various industrial, laboratory and R&D applications.
- Double-walled construction.
- Interior available in M.S. / S.S.-304 / S.S.-316 grade.
- Powder-coated exterior.
- High-grade mineral wool insulation minimizes heat loss.
- Special-grade tubular air heaters positioned in the circulating air path.
- Heavy forced-air circulation using strong and reliable axial flow fans.
- Cross-flow air circulation for effective drying.
- Adjustable damper for exhausting moist air, fumes and vapours.
- Digital PID control system for superior temperature accuracy.
- Digital timer function with buzzer alarm.
- Over-temperature and over-current protection.
- Voltage and Ampere meter for monitoring safe operation of the machine.
- Adjustable-height brackets provided on the inner walls to support heavily loaded drying trays.
TEMPERATURE CONTROL SYSTEM
The Tray Dryer is equipped with a Microprocessor Based PID Digital Temperature Indicator-Cum-Controller with an in-built Digital Timer to control the temperature from ambient +5°C to 250°C.
Once the unit is switched ON, heating starts automatically. When the set or desired temperature is achieved, the in-built Automatic Digital Minute Timer starts automatically. After completion of the set time period, the heaters switch OFF automatically and the unit sounds a buzzer to alert the user that the process is complete.
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| External | Powder Coated Mild Steel Sheet / SS-304 / SS-316 |
| Internal | S.S.-304 Grade / S.S.-316 Grade |
| Heater | Tubular Air Heaters |
| Temperature Range | Ambient +5°C to 250°C |
| Temperature Accuracy | ±1.0°C at 150°C |
| Temperature Uniformity | ±1.0°C at 150°C |
| Temperature Sensor | Fe-K Thermocouple |
| Display | Digital LED with Set Value (SV) & Process Value (PV) |
| Temperature Controller | Microprocessor Based PID Digital Temperature Indicator-Cum-Controller with In-Built Digital Timer |
| Circulation | Heavy Forced Air Circulation by Strong & Reliable Axial Flow Fans for Cross-Flow Circulation |
| Motor | 1/2 H.P. Motor |
| Insulation | High Grade Mineral Wool |
| Trays | M.S. / Stainless Steel (SS-304 / SS-316) Trays |
| Drip Tray | M.S. / Stainless Steel (SS-304 / SS-316) |
| Door Packing | Asbestos Packing Door |
| Safety Device | Over Temperature and Over Current Protection |
| Power Supply | 220/230V or 400/430V, 3 Phase A.C. Supply |
MODELS AND SIZES
| Model No. | Inner Dimension (W × H × D) | Tray Capacity |
|---|---|---|
| TDO-6 | 430 × 840 × 560 mm | 6 |
| TDO-8 | 430 × 840 × 650 mm | 8 |
| TDO-12 | 430 × 840 × 915 mm | 12 |
| TDO-16 | 430 × 840 × 1100 mm | 16 |
| TDO-24 | 915 × 840 × 915 mm | 24 |
| TDO-48 | 965 × 1275 × 1450 mm | 48 |
| TDO-96 | 965 × 1700 × 1450 mm | 96 |
OPTIONAL ACCESSORIES
- Spare Aluminium Tray
- Spare Stainless Steel Tray (SS-304 Grade / SS-316)
CUSTOMIZATION
We specialize in both standard and customized models, specifically designed to meet the challenging demands of various individual and specialized research applications.
NOTE
Since our policy is of continuous development and improvement, all technical data, specifications and pictures are subject to change without prior notice.
