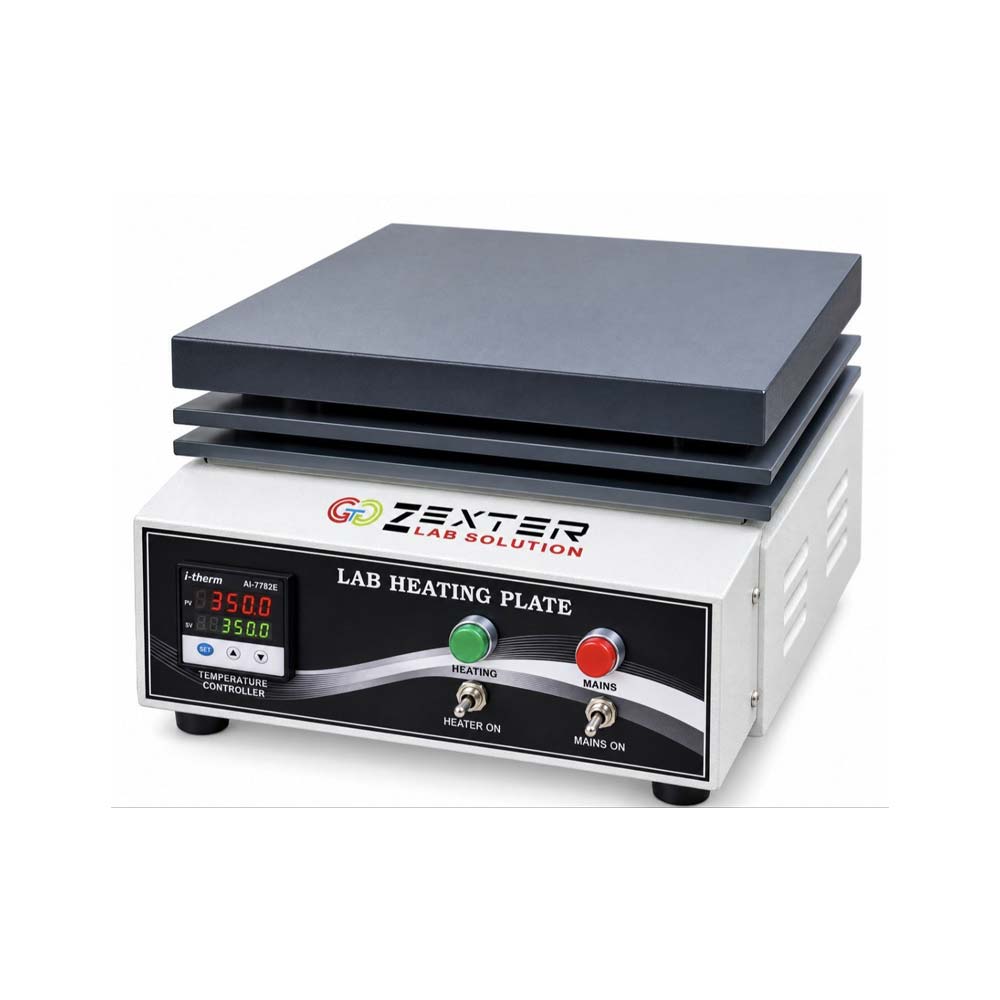

ZEXTER HOT PLATE (RECTANGULAR / LED MOUNTING HOT PLATE) – MODEL NO. GGT-117
G.G. TECHNOLOGIES
Manufacturers of Hospital, Institute, Industries, Agriculture, Pharmaceutical, Lab Testing Equipments
FEATURES
- Sturdy design.
- Corrosion resistant body.
- Easy to operate.
SPECIFICATIONS
- Body Material: Body is made of thick M.S. (Mild Steel) / S.S. (Stainless Steel).
- Insulation: Top Plate over hangs by supporting of ceramic beads which ensures air insulation between plate and base unit.
- Plate Selection: Option to select between Cast Iron or S.S. Plate.
- Surface Temperature: Maximum surface temperature reaches up to 300°C.
- Temperature Control: Temperature is controlled by an energy regulator or a Microprocessor Based PID Digital Temperature Indicator-cum-Controller.
- Heating Elements: Long lasting nichrome elements are used.
- Sizes & Power: Various sizes are available, designed to work on 230 Volts A./C. only.
TECHNICAL SPECIFICATION
| Parameter | Specification Details |
|---|---|
| Construction | M.S. Sheet duly powder coated / S.S |
| Top Platform | Stainless Steel Plate (S.S.-304) for longer life and temperature uniformity |
| Heating Elements | Placed underneath for uniform heating duly insulated |
| Temperature Controller | Temp. Controlled by energy regulator / Microprocessor Based PID Digital Temperature Indicator-cum-Controller |
| Max. Temperature Range | Continuous heating up to 370°C |
| Electric Supply | 220/230V AC, 50/60Hz |
