INDUSTRIAL DRYING OVEN GGT 418
G. G. Technologies
ZEXTER
Manufacturer of Hospital, Institute, Industries, Agriculture, Pharmaceutical lab Testing Equipments
Introduction:
We are manufacturers of Industrial Drying Oven in India since last two decades. We strongly believe in the principle of quality first and everything else to follow, which reflects in our products, which are renowned for long trouble free services in various hospitals and research institutes across India and abroad.
We specialize in both standard and customized models of Industrial Drying Oven specially designed to meet various special requirements of our customers across India and abroad. Over a short period of time Labsol brand have been established as a leading exporters of Industrial Drying Oven in India, catering to South Asian, African and European Markets. Beside the regular exports we are also catering to our domestic market and are suppliers of our Industrial Drying Oven to various laboratories, institutes, hospitals, nursing homes and research faculties.

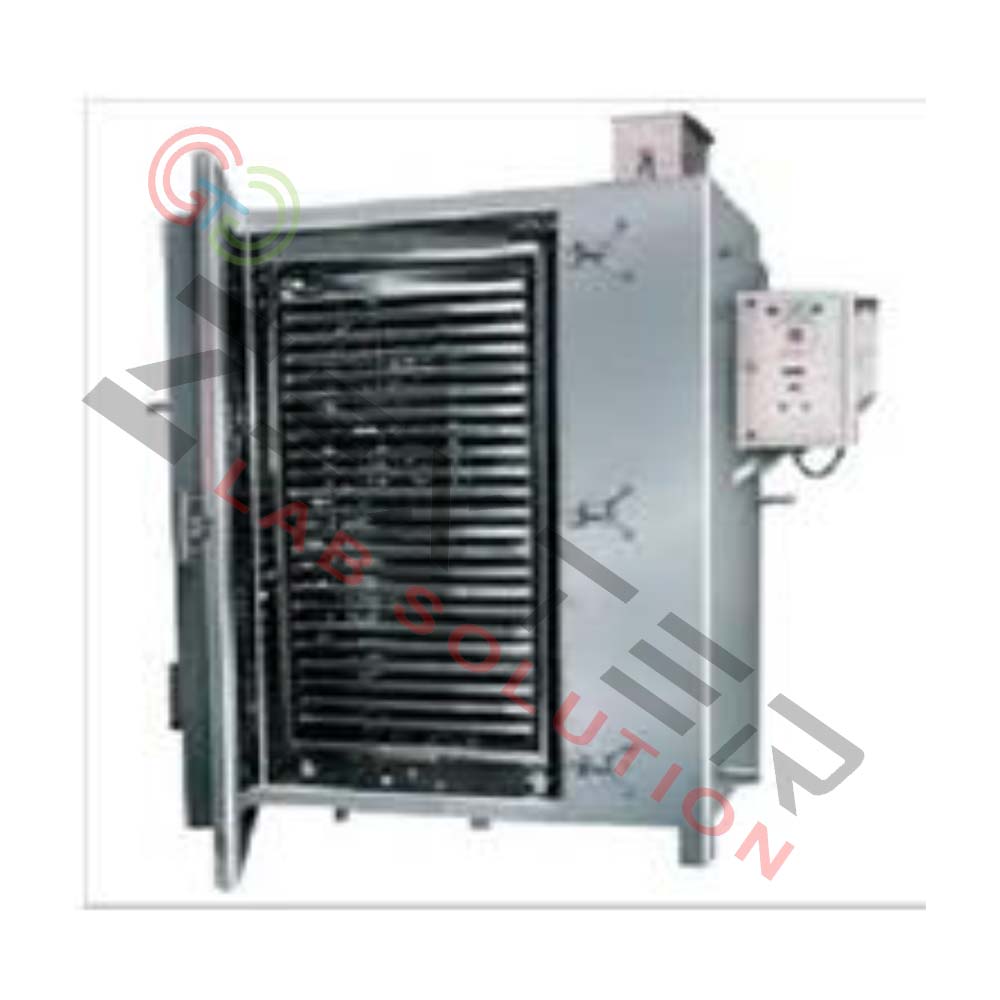

Labsol industrial drying oven is a double walled unit mounted on a sturdy iron frame, Inner and Outer made up of heavy M.S. sheet, with outer duly hammer tone painted and inner with high temperature Aluminum paint. The gap between two walls is filled high grade glass wool to minimize thermal loss. Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls. Heating is brought about by strip type air heaters, and each heater is an independent unit which can be easily replaced in event of failure.
Temperature range from 50°C to 250°C is controlled by digital temp controller-cum-indicator with an accuracy of ±5°C the inner chamber temperature. Ventilation is provided with adjustable opening at the top to exhaust the fumes of vapors produced during processing. Unit is supplied with 3 shelves and extra shelves can be supplied at extra cost.
A heavy duty ‘V’ belt driven motor suitable capacity provides forced air circulation so as to ensure uniform heating throughout the inner chamber. A separate control panel is fitted to chamber with individual control for ON/OFF, air circulating fan and thermostat. To work 400/440 Volts A.C. supply only.
TECHNICAL SPECIFICATION:
| Temperature Control | ||
| Temperature Sensitivity | ±°C | 10 C or better |
| Spatial Deviation In Temperature | ±°C | 0.5 or better |
| Readability | °C | 0.1 |
| Temperature range | °C | 5°C above ambient to 250°C (Standard) |
| Temperature Sensor | PT-100 | |
| Temperature Controller | Hydraulic Thermostat/PID controller optional | |
| Display | LED/LCD | |
| Adjustable alarm limits | Optional With PID controller only. | |
| Safety thermostats | ||
| Temperature variation Adjustments | 3 (With PID Controllers only) | |
| Temperature Sensors | PT-100 | |
| Automatic temperature setting | Yes (With PID Controllers only) | |
| Adjustable limits | Yes (With PID Controllers only) | |
| Light control | ||
| Readability or Set ability | % | 10% (optional feature) |
| Light intensity (Middle chamber) | Lux | As Desired (optional feature) |
| Light intensity (Both Sides) | Lux | As Desired (optional feature) |
| Accessories | ||
| Timer (999 mins) | optional | |
| Program (Real Time) | optional | |
| Data Acquisition Program | optional | |
| Serial Port (Printer) | RS232C | optional |
| Inspection window in door | optional | |
| Shelves | ||
| Standard | (Size Specific) | |
| Internal Dimensions | mm | Model Specific |
| Maximum Permitted load per shelf | kg | 25 Kg |
| Maximum Permitted total load | kg | 600 kg |
| Accessories | ||
| Printer Report Program | optional | |
| 2 x 24 characters LCD Display | optional | |
| Access Port 30 mm | optional | |
| Castors, lockable | Yes | |
| Power consumption | ||
| Nominal power | W | 1250-3650 |
| Nominal voltage | V | 220-230 Volts, 50 Hz Single Phase |
| Frequency | Hz | 50 |
MODELS AND SIZES:
| S.NO. | Model No. | SIZE INSIDE CHAMBER | LOAD | NO. of TRAYS |
|---|---|---|---|---|
| 1 | IDO-8 | 430 x 840 x 650 mm | 3.0 KW | 8 |
| 2 | IDO-12 | 900 x 600 x 600 mm | 5.0 KW | 12 |
| 3 | IDO-18 | 900 x 900 x 900 mm | 7.0 KW | 18 |
| 4 | IDO-24 | 1200 x 900 x 900 mm | 10.0 KW | 24 |
| 5 | IDO-30 | 1500 x 900 x 900 mm | 10.0 KW | 30 |
| 6 | IDO-36 | 1800 x 900 x 600 mm | 10.0 KW | 36 |
| 7 | IDO-48 | 1800 x 900 x 900 mm | 18.0 KW | 48 |
| 8 | IDO-60 | 2400 x 900 x 900 mm | 24.0 KW | 60 |
| 9 | IDO-96 | 2400 x 1200 x 900 mm | 30.0 KW | 96 |
