SEMI AUTOMATIC MICROPROCESSOR BASED BOMB CALORIMETER GGT – 1519

SEMI AUTOMATIC MICROPROCESSOR BASED BOMB CALORIMETER (MODEL NO. GGT-1519)

ZEXTER – A Pioneer Name in Lab Solutions

Semi Automatic Microprocessor Based Bomb Calorimeter is used for determination of heat of combustion and calorific value of fuel and other organic materials. It is designed as per the specifications of Institute of Petroleum, BS 1016 Standard and IS No. 1350/1966.

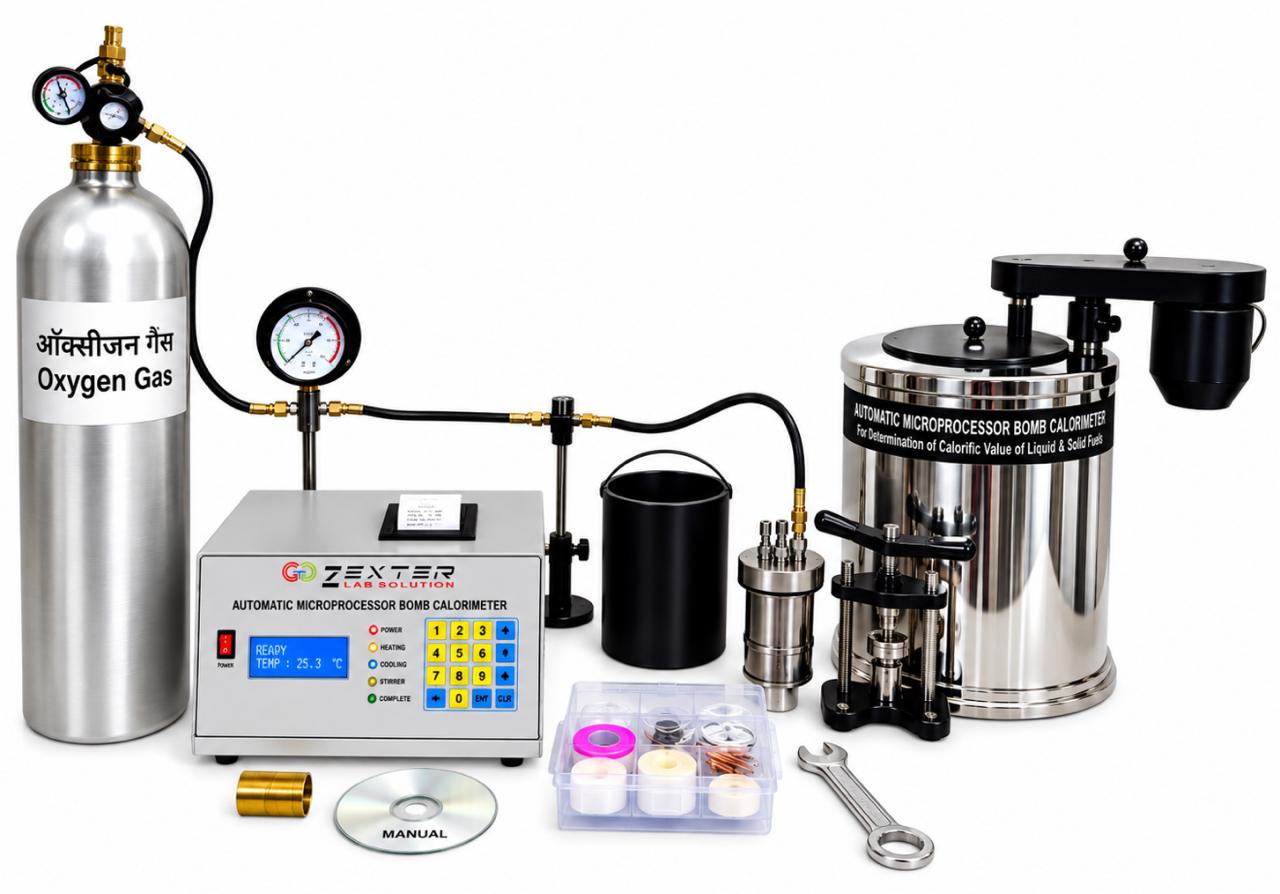

The Bomb Calorimeter Apparatus provides a simple and economical method for determining the heat of combustion of organic matter and the calorific value of solid & liquid fuels. The complete outfit is supplied with essential accessories including Bomb, Calorimeter Vessel with Bomb Support, Water Jacket, Stirrer and Automatic Microprocessor Unit.

KEY FEATURES

• Microprocessor based automatic measurement of calorific value.
• Automatic calculation of calorific value and water equivalent.
• 16 × 4 Line LCD Display (Blue Colour).
• Big Jumbo LCD Display.
• Inbuilt Printer.
• 16 Key Pad Soft Touch.
• Weight of tablet feedable.
• Full test report printout with date and time.
• Alarm on firing and after completion of test.
• Fuse wire open indication.
• Selectable type of test – Water Equivalent Test & Sample Test.
• Internal Data Logger with Computer Interface.
• PC Software for data record.
• Printout of setting values.
• Soft Power ON for system.
• Reset button for next sample.

TESTING OF BOMB

Each Bomb is tested before leaving the factory in accordance with the requirements of the Institute of Petroleum (I.P. 12/63T Appendix 1), and a works certificate is issued with each Bomb.

The certificate gives the results of hydraulic testing under a pressure of 300 atmospheres (4400 p.s.i.) maintained for a period of ten minutes without any sign of leakage. The maximum deformation must not exceed the specified limits.

CALORIMETER VESSEL

The vessel is made of copper and is chromium plated or made of Stainless Steel. It includes a Bomb Support that ensures proper positioning of the Bomb in the vessel.

WATER JACKET

The water container of the jacket is made of copper and is chromium plated both inside and outside, or made of Stainless Steel. The top is closed by an ebonite cover. A terminal block is fitted to the top container so that connections can be made from the control.

OFFSET STIRRER

The stirring mechanism provides sufficient turbulence for effective stirring while preventing heat from being imparted to the calorimeter water.

It consists of an impeller stirrer driven at a constant speed of approximately 800 RPM. The offset arrangement, whereby the motor drives the impeller via a belt, helps prevent heat transfer between the motor and calorimeter vessel contents.

ACCESSORIES

SAVED DATA

• Save data in M.S. Word format.
• Appropriate details are saved.
• Easy to save.
• Proper information provided.

PRINTOUT OF RESULT

• Printout of result with full details.
• Save data in printed form.
• Full test report includes relevant test information and calculated results.

SOFTWARE FOR COMPUTER INTERFACE

• Software provided for data storage.
• Easy to use and install.
• Save data and printout both.
• Easy to connect computer with Bomb Calorimeter.
