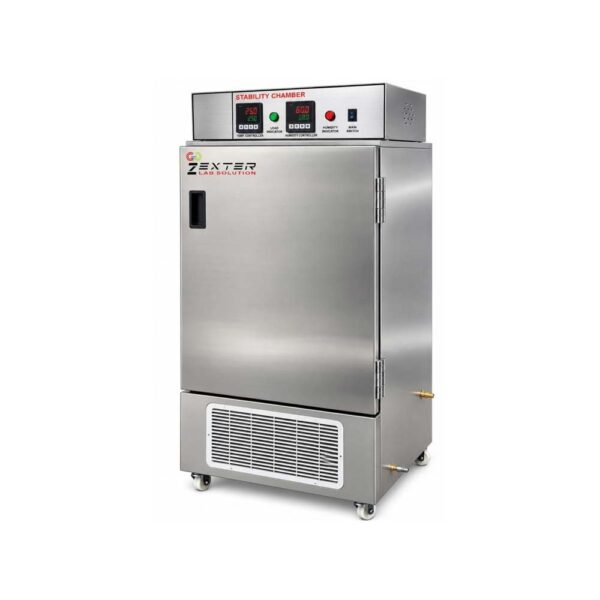

ZEXTER STABILITY CHAMBER (Model No. GGT-411)
G. G. Technologies / Z TEXTER LAB SOLUTION
Manufacturer of Hospital, Institute, Industries, Agriculture, Pharmaceutical lab Testing Equipment’s[cite: 10]
SPECIFICATION
Double walled interior made up of stainless steel & exterior made up of mild steel in powder coating paint / stainless steel[cite: 10]. Glass wool/PUF insulation between both the walls is provided[cite: 10]. Full length inner glass door and outside metal door with magnetic gasket & lock[cite: 10]. Forced air circulation for uniform temperature[cite: 10]. Stainless steel perforated tray is provided[cite: 10]. The tray can be placed at various heights to accommodate the change in sample height[cite: 10]. The purpose of doing so is to vary the exposure intensity to reduce the test duration[cite: 10]. PU wheels for easy move ability[cite: 10].
SYSTEM & SAFETY FEATURES
- Illumination: Chamber is illuminated using fluorescent tube light to produce visible light (measured in lux)[cite: 10]. A UV light of wavelength 365nm (measured in watt/sq. meter) is fitted on topside of chamber[cite: 10].
- Control System: Temperature controller with Micro Processor Based Digital Temp. Controller[cite: 10].
- Humidity System: Humidity is by steam injection and is directly displayed in % RH measured by capacitance type Electronic Humidity Sensor[cite: 10].
- Cooling System: CFC free, the cooling system consists of hermetically sealed compressor coupled with evaporation coil and condenser, safe guarded by time delay circuit[cite: 10]. Refrigerant 134A[cite: 10].
- Safety: A safety thermostat to switch off tube lights if temperature overshoots[cite: 10]. Door switch to switch off the UV light when door is opened[cite: 10].
- Power Supply: The unit works on 230 volts AC AND 50 Hz mains supply[cite: 10].
TECHNICAL SPECIFICATIONS
| Temperature Range | 10°C to 60°C (Note: Document shows “10°C to 0°C”, likely a typo for 60°C)[cite: 10] |
| Humidity Range | 40% RH to 80% RH[cite: 10] |
| Temperature Uniformity | ±1°C[cite: 10] |
| Temperature Accuracy | ±1°C[cite: 10] |
| Humidity Accuracy | ±3.0% RH[cite: 10] |
| Humidity Uniformity | ±3% RH[cite: 10] |
SIZES & CAPACITIES
| Model No.[cite: 10] | Dimensions (MM)[cite: 10] | Capacity in Liters[cite: 10] | Volume[cite: 10] | Shelves[cite: 10] |
|---|---|---|---|---|
| SC-4[cite: 10] | 455 x 410 x 610[cite: 10] | 112[cite: 10] | 4 Cu ft[cite: 10] | 2[cite: 10] |
| SC-6[cite: 10] | 505 x 415 x 830[cite: 10] | 171[cite: 10] | 6.1 Cu ft[cite: 10] | 2[cite: 10] |
| SC-10[cite: 10] | 570 x 550 x 875[cite: 10] | 280[cite: 10] | 10 Cu ft[cite: 10] | 3[cite: 10] |
| SC-12[cite: 10] | 650 x 580 x 900[cite: 10] | 336 (Estimated based on standard context) | 12 Cu ft[cite: 10] | 3[cite: 10] |
| SC-15[cite: 10] | 700 x 640 x 900[cite: 10] | 420 (Estimated based on standard context) | 15 Cu ft[cite: 10] | 4[cite: 10] |
| SC-16[cite: 10] | 700 x 640 x 970[cite: 10] | 450 (Estimated based on standard context) | 16 Cu ft[cite: 10] | 4[cite: 10] |
| SC-20[cite: 10] | 540 x 700 x 1200[cite: 10] | 540[cite: 10] | 20 Cu ft[cite: 10] | 6[cite: 10] |
