LEAK TEST APPARATUS GGT – 140

LEAK TEST APPARATUS (MODEL NO. GGT-140)

G.G. Technologies® – Manufacturer of Hospital, Institute, Industries, Agriculture & Pharmaceutical Lab Testing Equipment’s

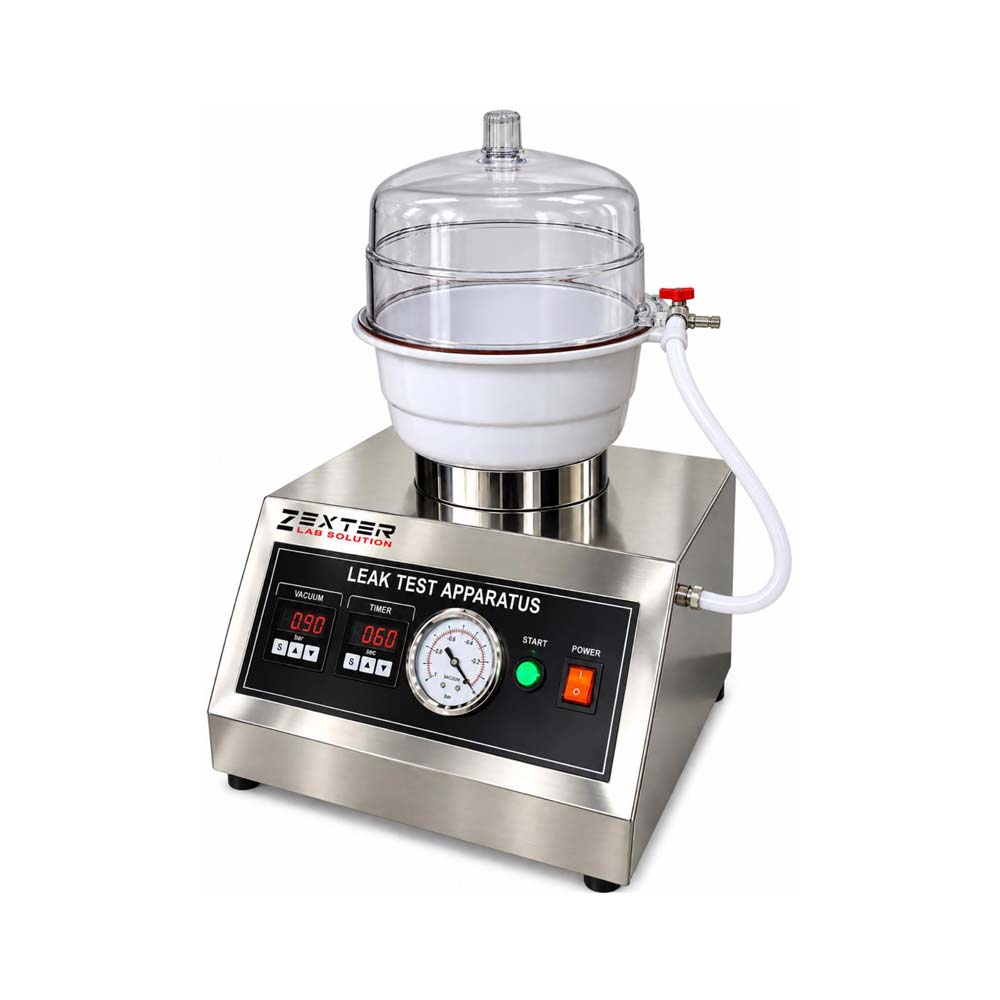

Leak Test Apparatus is a solid-state instrument designed for leakage testing of food, drug and other industrial chemical products. The instrument is used to evaluate the quality of packing processes in strips, blisters and sachets containing tablets, granulates and liquids.

The apparatus is also used to check whether the seals enclosing the product are perfectly intact. The unit contains a polycarbonate desiccator housing designed to sustain vacuum for a long period of time.

A compact vacuum pump is provided for creating a high vacuum level within a short period. Test samples are placed inside the polycarbonate desiccator housing, where the vacuum pump generates the required vacuum. The generated vacuum is held for a preset period and then released.

During the test, samples should retain their shape, indicating proper sealing. For additional leak detection, strips or bottles under test can be immersed in a colored dye solution, normally Methylene Blue. During venting of the desiccator, the dye can penetrate through any holes or leakage points and stain the contents of flexible packaging, helping identify defective seals.

APPLICATION

• Leakage Testing of Packaging
• Food Product Packaging Testing
• Drug & Pharmaceutical Packaging Testing
• Industrial Chemical Product Packaging Testing
• Strip Packaging Testing
• Blister Packaging Testing
• Sachet Packaging Testing
• Tablet Packaging Testing
• Granulate Packaging Testing
• Liquid Packaging Testing
• Seal Integrity Testing

FEATURES

• Solid-state instrument designed for leakage testing.
• Suitable for strips, blisters, sachets and other packaging.
• Suitable for packages containing tablets, granulates and liquids.
• Polycarbonate desiccator housing for maintaining vacuum.
• Compact vacuum pump for creating high vacuum in a short period.
• Vacuum can be maintained for a preset testing period.
• Suitable for checking integrity of product seals.
• Supports dye penetration testing using colored dye solution such as Methylene Blue.
• Available in automatic and manual configurations.
• Digital timer/display options available depending on model.
• GMP models with stainless steel body available.
• Audio and visual alarm provided in available models.

WORKING PRINCIPLE

The test samples are placed inside the polycarbonate desiccator housing. A compact vacuum pump generates vacuum inside the desiccator and the generated vacuum is maintained for a preset period before being released.

The samples being tested should retain their shape during the vacuum test, indicating that the sealing is correct.

For dye penetration testing, strips or bottles are immersed in a colored dye solution, normally Methylene Blue. When the desiccator is vented, any holes or leakage points allow the dye to penetrate the package. The contents of flexible packaging may also become stained, helping identify leakage or sealing defects.

MODELS AND SPECIFICATIONS

• Model LTA-140-1 – Auto Leak Test Apparatus:
  Digital Dual Display, Run Time Display of Vacuum Pump up to 99 Hours & 59 Minutes, Timer Display for Vacuum Holding / Testing Time up to 99 Hours & 59 Minutes, Automatic Operation without manual valve operation, Microprocessor based, GMP Model, S.S. Body, Audio & Visual Alarm and 10-inch Desiccator.
• Model LTA-140-2 – Manual Leak Test Apparatus:
  Digital Dual Display, Run Time Display of Vacuum Pump up to 99 Hours & 59 Minutes, Timer Display for Vacuum Holding / Testing Time up to 99 Hours & 59 Minutes, Manual Operation with 2 Valves, GMP Model, S.S. Body, Audio & Visual Alarm and 10-inch Desiccator.
• Model LTA-140-3 – Manual Leak Test Apparatus:
  Single Digital Display, Timer Display up to 99 Hours & 59 Minutes for Vacuum Holding / Testing Time, Manual Operation with Single Valve, GMP Model, S.S. Body, Audio & Visual Alarm and 10-inch Desiccator.

OPTIONAL SPARES & ACCESSORIES

• Desiccator: 8 Inches
• Desiccator: 10 Inches
• Desiccator: 12 Inches
• Silicon Pipe (Output): 1.5 Meter
