COLONY COUNTER GGT – 1703

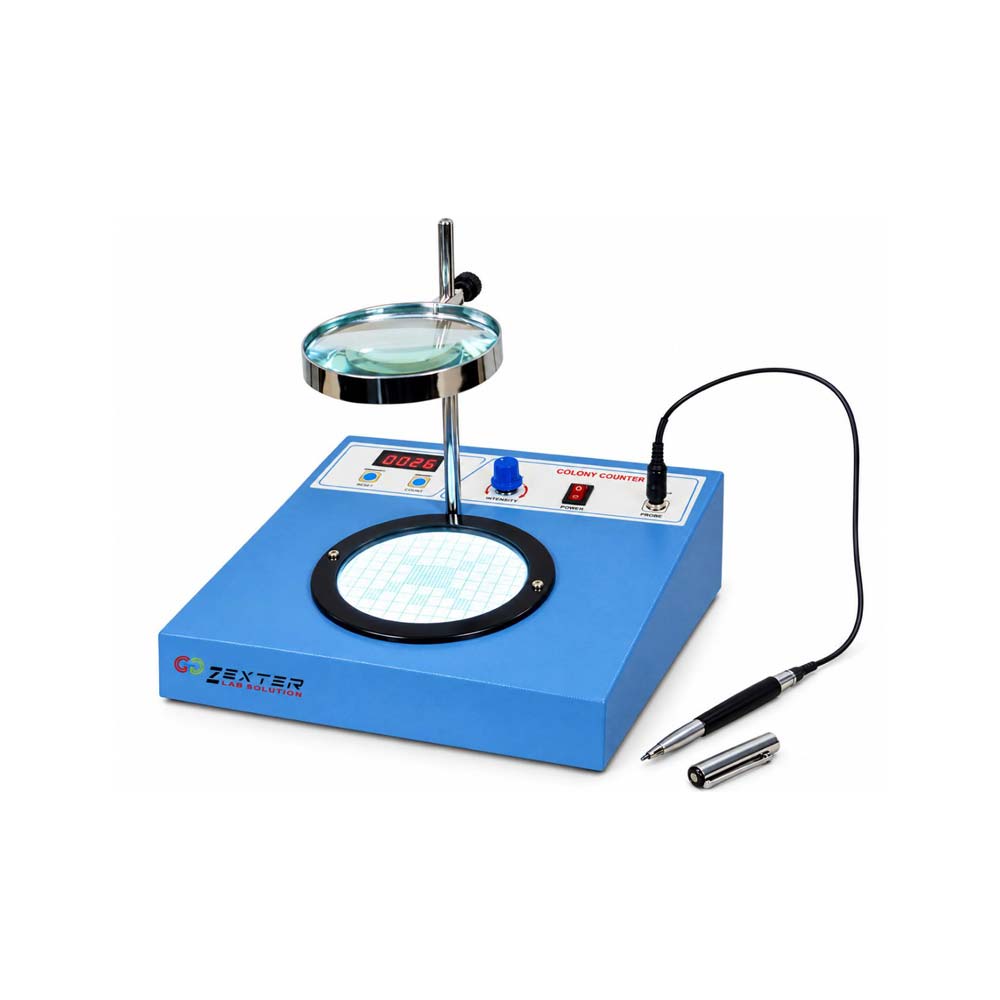

COLONY COUNTER (MODEL NO. GGT-1703)

ZEXTER – A Pioneer in Lab Solutions

Colony Counter is precision designed and constructed for convenient and accurate colony counting applications. The unit is provided with special pen support that allows simultaneous marking and counting operations.

The instrument incorporates a resettable solid-state counting system and is supplied with a magnifying glass and illumination support for clear and uniform viewing of colonies.

A digital display provides convenient count indication and makes the counting process easy to handle. Audible confirmation is provided for each count, allowing the operator to perform counting operations efficiently.

The unit is equipped with a 110 mm diameter magnifying glass, uniform glare-free illumination and a Wolff Huegel glass grid with focusing facility.

APPLICATION

• Colony Counting
• Microbiology Laboratories
• Bacteriological Laboratories
• Clinical Laboratories
• Research Laboratories
• Pharmaceutical Laboratories
• Laboratory Culture Counting

FEATURES

• Precision designed and constructed Colony Counter.
• Special pen support for simultaneous marking and counting.
• Resettable solid-state counting system.
• 110 mm diameter magnifying glass.
• Audible confirmation of each count.
• Uniform glare-free illumination.
• Digital display for convenient count indication.
• 3-digit display with maximum count up to 999 in DCC-3 model.
• 4-digit display with maximum count up to 9999 in DCC-4 model.
• Auto marker pen.
• Wolff Huegel glass grid with focusing facility.
• Designed for better durability and longer life.
• Multiple designs available.

WORKING PRINCIPLE

The Colony Counter provides simultaneous colony marking and counting with the help of a special marker pen arrangement.

The magnifying lens and glare-free illumination provide a clear view of the colonies. During counting, an audible confirmation is generated for each count and the corresponding count is displayed on the digital display.

The Wolff Huegel glass grid with focusing facility assists in systematic observation and counting of colonies.

TECHNICAL SPECIFICATIONS

• Product Model: GGT-1703
• Available Models: DCC-3 / DCC-4
• Dish Size: 110 mm
• Magnifying Glass Diameter: 110 mm
• Magnification: X 1.7
• Dimensions: L 274 × B 320 × H 167 mm (Approx.)
• Weight: 3 Kg (Approx.)
• Power Supply: 230V ±10% AC, 50Hz
• Power Consumption: 40W
• Illumination: Uniform Glare-Free
• Grid: Wolff Huegel Glass Grid with Focusing Facility

MODELS AND SPECIFICATIONS

• DCC-3: 3-Digit Digital Display with maximum counting capacity of 999.
• DCC-4: 4-Digit Digital Display with maximum counting capacity of 9999.

STANDARD ACCESSORIES

• Marking Pen: 1 No.
• Magnifier Lens: 1 No.
• Dust Cover: 1 No.
