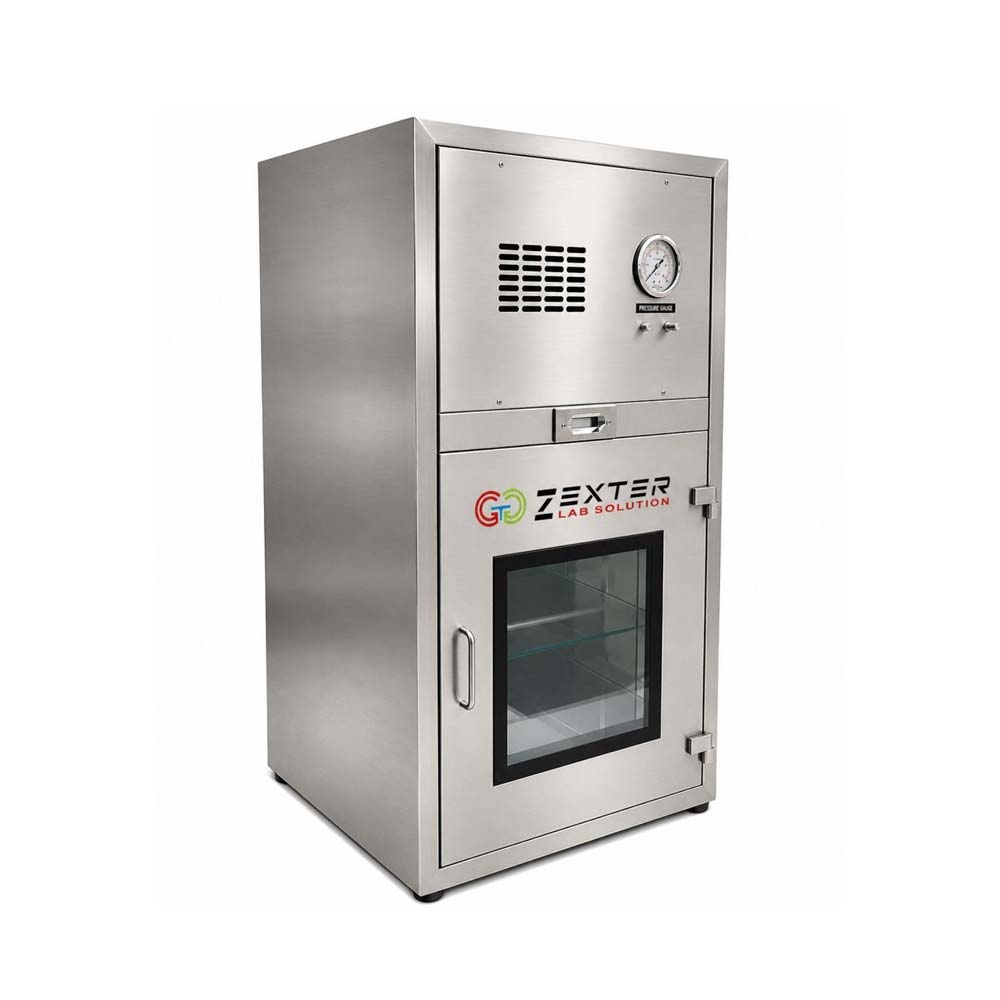

Dynamic Pass Box GGT-518

DYNAMIC PASS BOX

Model No. – GGT-518

SPECIFICATION:

Dynamic Pass Box are self-contained units installed at the entrance to clean rooms.
They minimize the amount of particulate contamination and are easy to install and
adaptable to existing facilities. The pass boxes offered by us are the safest equipment
which contain clean zone cross contamination of material in transit.

These boxes operate on the principle of one door opening at a time with electromagnetic
interlocking so as to avoid any possibility of cross contamination. The unit is supplied
with magnetic gauge to measure the pressure drop in the unit while in operation.

Our custom-made units are easily installed on the wall between clean room and other
room and are made with resistant epoxy-coated steel. With UV Light these are fitted
with a mechanical interlock system that prevents both doors from being opened at
the same time. ZEXTER offers unmatched prices, usage and application for various
pharmaceutical industries.

CONSTRUCTION & FILTER DETAILS

Our unit has double walled construction and is made up of Stainless Steel.

• Filter Casing: S.S. 304
• Media: Non-woven synthetic media sandwiched between two layers of high density polyethylene mesh

SUPPLY FILTER / HEPA FILTER:

• Filter Casing: Aluminium factory extruded section
• Efficiency: 99.97%
• Media: Micro fiberglass paper media (Imported), pleated along with hot melt glue
• Blower: 230 Volts, 50 Hz, Single-phase blower along with inbuilt motor

SALIENT FEATURES

• Electromagnetic Interlocking
• Modular & Economical
• Magnehelic Gauge
• Membrane Soft Touch Keypad Controlled

APPLICATIONS

• Medical Implant
• Medical Devices
• Educational Institution
• Vaccine Manufacturers
• Food Processing Industry

ACCESSORIES

• Magnehelic Gauge
• Hour Meter connected to UV Light
• Door Handles
• Membrane Soft Touch Keypad Controlled

ELECTRICALS:

• Fluorescent light with milky diffuser
• UV light along with Hour Meter
• Electromagnet for door interlocking
• Buzzer
• Indicator lamps
• Three-pin top along with connection cable
