TEROGOTOMETER GGT – 1578

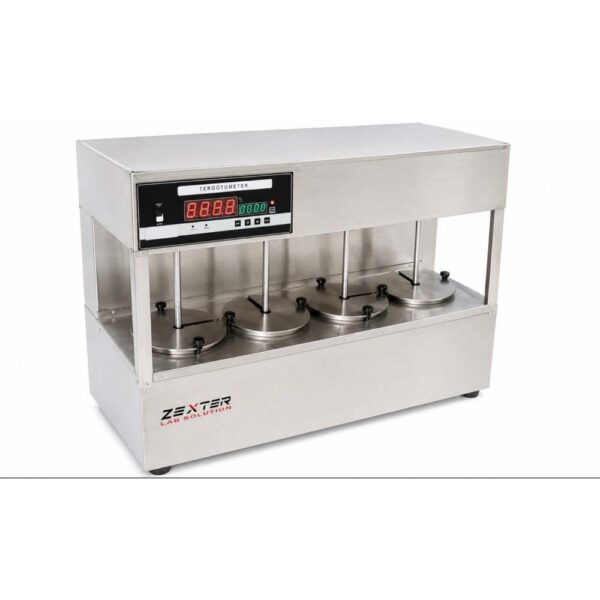

TEROGOTOMETER (MODEL NO. GGT-1578)

ZEXTER – A Pioneer in Lab Solutions

Terogotometer is designed for laboratory evaluation of soaps, detergents, dyestuffs, surfactants, cleaners for textiles and other materials. It provides controlled temperature, speed and agitation for accurate and reliable laboratory testing.

The unit consists of a rectangular constant temperature bath having an inner reservoir made of thick gauge 304 AISI stainless steel, buffed to mirror finish. The external casing is made of thick gauge CRCA sheet duly powder coated. The bath is provided with a stainless steel lid with 6 ports and is supplied with 6 stainless steel beakers.

Thermal insulation is provided between the walls to prevent loss of temperature and maintain uniform operating conditions during testing.

The agitators are driven by a heavy-duty geared motor with frequency drive. Specially designed stainless steel stirring paddles help prevent tearing of soiled cloths or swatches during operation. The agitator oscillates through an angle of 350° and its speed can be adjusted as required.

APPLICATION

• Laboratory Evaluation of Soaps
• Detergent Testing
• Dyestuff Evaluation
• Surfactant Testing
• Textile Cleaner Evaluation
• Testing of Textile Materials
• Laboratory Washing & Cleaning Tests

FEATURES

• Designed for heavy-duty continuous operation.
• Electrically controlled constant temperature bath.
• Available with 2, 4 or 6 agitators.
• Frequency drive helps regulate the digitally indicated oscillation speed.
• Agitator oscillates through an angle of 350°.
• Specially designed agitators help avoid tearing of cloths and swatches.
• Variable range of speed and temperature with high accuracy and uniformity.
• Noiseless drive system.
• Microprocessor based control system.
• Compact size with embedded control panel.
• Stainless steel sheathed immersion heater for uniform heat distribution.
• Digital microprocessor based PID temperature controller.
• Digital timer for presetting the duration of the test run.
• Automatic stopping of drive system after completion of preset time.
• Electronic speed controller for variable speed adjustment.
• Manufactured under ISO 9001-2008, CE and WHO GMP quality system.
• Traceability certificate from NABL Accredited Lab can be provided on customer request.

CONSTRUCTION

Rectangular constant temperature bath having an inner reservoir made of thick gauge 304 AISI stainless steel, buffed to mirror finish. The external casing is made of thick gauge CRCA sheet duly powder coated. The bath is provided with a stainless steel lid with 6 ports and 6 stainless steel beakers.

Thermal insulation is provided between the inner and outer walls to minimize temperature loss.

DRIVE MECHANISM

The 2, 4 or 6 agitators are driven by a heavy-duty geared motor with frequency drive. The stirring paddles are manufactured from stainless steel rods and are specially designed to prevent tearing of soiled cloths or swatches during operation.

The agitator oscillates through an angle of 350°. The speed is adjustable through the frequency drive and is digitally indicated. The drive assembly is mounted on a rigid stand above the constant temperature bath and is provided with detachable stirring paddles.

HEATING

A stainless steel sheathed immersion heater made of oxidized Nichrome wire tubular heater is fitted at the bottom of the bath to uniformly dissipate heat across the bath area.

CONTROL PANEL

• Mains Control: Mains ON/OFF control for operation of the unit.
• Temperature Controller: Fully automatic microprocessor based PID temperature controller with Class-A PT-100 sensor for accurate temperature control. The controller has separate displays for set value and process value.
• Digital Timer: Allows presetting of test duration in hours/minutes. The drive system automatically stops after completion of the set time.
• Motor Control: Motor ON/OFF control provided on the control panel.
• Frequency Drive: Continuously variable speed adjustment through the speed control knob.

TECHNICAL SPECIFICATIONS

• Model: GGT-1578
• Bath Capacity: To accommodate 2 / 4 / 6 agitators
• Pot Capacity: 2 Liters Each
• Speed: 25 to 150 RPM, ±1 RPM
• Power Supply: 230V AC ±10%, 50 Hz, Single Phase
• Temperature Range: Above ambient to 50°C
• Temperature Accuracy: ±0.5°C
• Agitator Oscillation: 350°
• Temperature Sensor: Class-A PT-100
• Temperature Controller: Microprocessor Based PID Controller

OPTIONAL ACCESSORIES

• Heating + Cooling System: Optional temperature control configuration.
• PLC Control: Microprocessor based programmable logic control with LCD display for integrated control of temperature, speed, water level and other functions.
• Built-in Timer: Integrated timer functionality with PLC control system.
• Communication: RS-232/485 communication protocol for data acquisition.
• Touch Screen Control Panel: Touch screen interface for convenient operation.
• Trend Graphs: Real-time and historical trend graph functionality.
• Data Logging: User-selectable data logging capabilities.
• Alarm Settings: Fully configurable alarm settings.
• Enhanced Functionality: Colour touch screen with Windows-based menu navigation.
